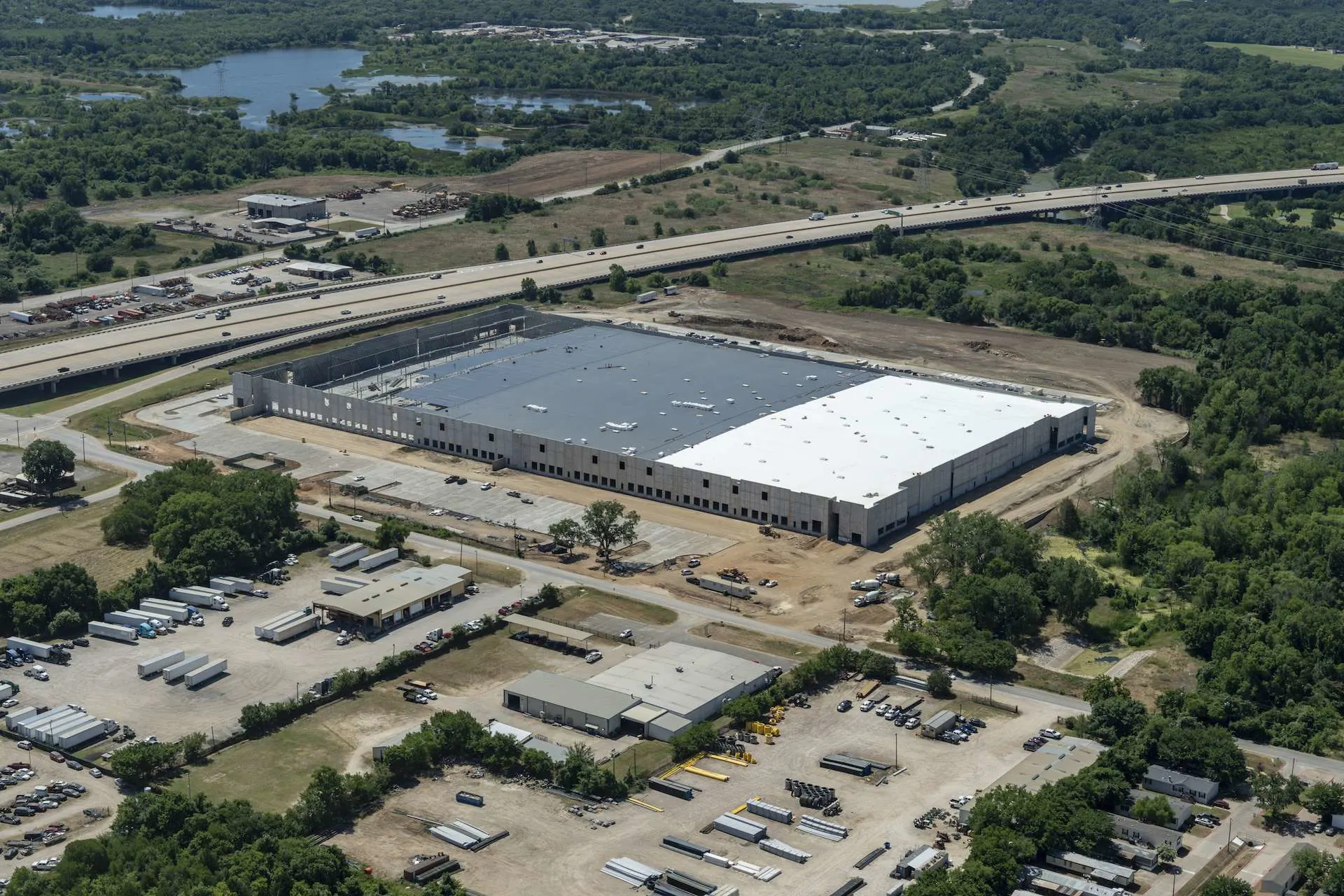

Oakdale Industrial III – Warehouse Project Overview

Oakdale Industrial III is a warehouse and industrial development project that represents the importance of efficient structural planning, accurate steel detailing, Building Information Modeling (BIM), and coordinated construction documentation. Modern industrial facilities must accommodate demanding operational requirements while providing durable, flexible, and efficient spaces for storage, logistics, distribution, material handling, and business operations.

From a structural engineering and detailing perspective, the Oakdale Industrial III project requires careful coordination between structural design, architectural requirements, building systems, fabrication, and field construction. Warehouse structures often include large open areas, repetitive structural framing, loading zones, high-clearance spaces, roof systems, equipment supports, and service areas. Every structural component must be accurately developed so the final steel system can be fabricated, transported, assembled, and erected efficiently.

For Rydberg Engineering LLC, the Oakdale Industrial III project demonstrates the value of combining structural steel detailing, 3D structural modeling, BIM coordination, connection detailing, steel shop drawings, erection drawings, and construction documentation. This integrated approach helps project stakeholders maintain consistency between engineering requirements and fabrication and construction activities.

Industrial Warehouse Planning

Warehouse planning begins with understanding how the facility will be used. Storage arrangements, shipping and receiving operations, equipment movement, employee circulation, maintenance areas, and building services all influence the structural framework.

Efficient Space Utilization

A well-coordinated structural grid can maximize usable floor space while accommodating storage systems, aisles, loading areas, and operational equipment.

Flexible Warehouse Environment

An adaptable structural arrangement can support changes in storage layouts, equipment, tenant requirements, and future operational needs.

Structural Engineering for Oakdale Industrial III

Structural engineering provides the foundation for the warehouse’s strength, stability, and long-term performance. The structural system must transfer building loads efficiently while integrating with architectural and operational requirements.

Primary Steel Framing

The primary structural system may include columns, beams, girders, roof framing, bracing, base plates, and major connection components.

Structural Load Paths

Primary framing establishes the building’s principal load paths and transfers loads through the structural system toward the foundation.

Secondary Framing

Secondary structural components support roof and wall systems and contribute to the overall stability and constructability of the facility.

3D Structural Modeling and BIM

3D structural modeling is an essential part of modern warehouse detailing. A digital model provides a three-dimensional representation of the structural system and allows project participants to review individual members and their relationships.

Digital Structural Visualization

The BIM model can represent columns, beams, girders, braces, roof framing, connections, stairs, platforms, equipment supports, and miscellaneous steel.

Complex Framing Review

Three-dimensional visualization helps project teams examine framing intersections, openings, elevation changes, loading areas, equipment interfaces, and other complicated conditions.

Centralized Structural Information

A coordinated model can provide a common reference for engineers, architects, detailers, fabricators, contractors, and field erection teams.

Structural Steel Detailing for Oakdale Industrial III

Structural steel detailing converts engineering information into practical documentation used for steel fabrication and construction. Precision is particularly important for warehouse constructify-project because numerous structural components must fit together accurately.

Detailed Structural Components

The detailing process can include:

• Structural steel columns
• Beams and girders
• Roof framing
• Bracing members
• Base plates
• Gusset plates
• Connection plates
• Stiffeners
• Angles and channels
• Stairs and platforms
• Canopies
• Equipment supports
• Miscellaneous structural steel

Accurate Member Modeling

Each member should be modeled with appropriate geometry, dimensions, location, material information, and connection requirements.

Fabrication-Ready Information

Detailed structural models and drawings provide fabricators with the information needed to manufacture steel components according to the approved design.

Warehouse Storage and Material Handling

The structural system must work effectively with storage and material-handling requirements.

Storage Area Coordination

Columns, beams, walls, doors, and other structural elements should be reviewed against storage layouts and circulation paths.

Material Movement

Structural planning should support the movement of forklifts, pallet equipment, carts, service vehicles, and personnel.

Optimizing Usable Space

An efficient structural grid can minimize unnecessary obstructions and help maximize functional warehouse floor area.

Loading and Receiving Areas

Loading and receiving areas connect warehouse operations with transportation and distribution activities and require careful structural coordination.

Loading Dock Integration

Structural framing should be coordinated with loading docks, overhead doors, ramps, service entrances, and exterior canopies.

Vehicle Access

The structural layout should support practical vehicle and equipment movement without creating unnecessary obstructions.

Efficient Distribution Operations

Well-coordinated loading areas can improve the transition between incoming deliveries, storage, processing, and outgoing shipments.

Roof Framing and Building Systems

Warehouse roof systems must provide structural support while accommodating building services and operational requirements.

Roof Structural Coordination

Roof framing should be reviewed against roof assemblies, drainage, openings, equipment locations, and applicable structural requirements.

Rooftop Equipment Supports

Mechanical equipment, ventilation systems, exhaust units, and other installations may require dedicated structural supports.

Roof Penetration Coordination

Reviewing roof openings in the structural model can help identify potential conflicts before fabrication and construction.

Steel Shop Drawings for Oakdale Industrial III

Steel shop drawings provide fabricators with detailed information required to manufacture structural steel members and assemblies.

Fabrication Drawing Requirements

Shop drawings may contain:

• Member sizes and lengths
• Material specifications
• Connection configurations
• Plate dimensions
• Hole locations
• Bolt information
• Weld requirements
• Stiffener details
• Piece marks
• Assembly information

Fabrication Accuracy

Clear shop drawings help fabricators interpret the structural requirements and manufacture components accurately.

Efficient Steel Production

Well-organized documentation supports cutting, drilling, welding, assembly, inspection, and delivery of steel components.

Steel Erection Drawings

Erection drawings communicate essential information to field teams responsible for installing the structural steel.

Member Identification and Location

Erection documentation can include piece marks, grid references, elevations, orientations, and connection locations.

Field Installation Support

Clear erection drawings help field crews understand where individual members belong and how they connect to surrounding steel.

Reducing Installation Errors

Accurate documentation reduces uncertainty and can help minimize unnecessary field modifications.

Structural Connection Detailing

Connections are essential to the performance and constructability of the warehouse structure.

Bolted and Welded Connections

Connection details may include bolts, welds, plates, angles, gusset plates, stiffeners, and other structural components.

Constructible Connection Design

Connections should be detailed with fabrication, transportation, handling, field access, and erection requirements in mind.

Efficient Steel Assembly

Clear connection documentation helps fabricators and erectors understand how individual structural members are intended to interact.

Interdisciplinary BIM Coordination

Warehouse facilities contain numerous building systems that must be integrated within the available structural space.

Coordination With Building Services

Structural steel may need to coordinate with:

• Mechanical systems
• Electrical services
• Plumbing
• Fire protection
• Lighting systems
• Ventilation
• Security systems
• Material-handling equipment
• Loading equipment
• Architectural components

Clash Detection

BIM coordination can identify potential conflicts between structural framing and other building systems before fabrication.

Early Problem Resolution

Resolving conflicts during modeling can reduce rework, drawing revisions, fabrication changes, and field modifications.

Constructability and Preconstruction Planning

Constructability should be considered throughout structural modeling and detailing.

Fabrication Considerations

Steel components should be detailed with manufacturing, transportation, lifting, handling, and assembly requirements in mind.

Field Erection Planning

The structural system should be reviewed for crane access, connection accessibility, lifting requirements, and erection sequencing.

Construction Efficiency

Early constructability reviews can identify potential installation challenges before they affect fabrication or field construction.

Quality Control in Structural Detailing

Quality control helps maintain the accuracy and consistency of structural models and construction documentation.

Model and Drawing Review

Project documentation should be reviewed for:

• Member sizes
• Member dimensions
• Elevations
• Grid references
• Framing relationships
• Connection information
• Material specifications
• Piece marks
• Bolting requirements
• Welding requirements
• Drawing consistency

Pre-Fabrication Checking

Thorough checking helps identify discrepancies before structural steel is released for fabrication.

Reliable Construction Information

Quality-controlled documentation gives fabricators, contractors, and erection teams dependable information for project execution.

Digital Construction Workflow

Modern digital workflows enhance communication, visualization, and coordination throughout the project.

BIM-Based Detailing Process

An integrated workflow can connect structural modeling, clash detection, connection detailing, shop drawings, erection drawings, and construction documentation.

Improved Visualization

Three-dimensional models provide project stakeholders with a clearer understanding of complex structural conditions.

Enhanced Collaboration

Digital coordination allows engineers, architects, detailers, fabricators, contractors, and field teams to work from consistent information.

Durability and Long-Term Warehouse Performance

Industrial warehouse facilities are designed for long-term use, making structural durability and reliability important considerations.

Reliable Structural Framework

Accurate steel detailing supports a dependable structural system capable of accommodating ongoing warehouse operations.

Future Facility Modifications

Well-organized structural documentation can support future equipment installations, renovations, repairs, and operational changes.

Adaptable Industrial Space

A coordinated structural system can provide flexibility as storage, logistics, equipment, and business requirements evolve.

Rydberg Engineering LLC – Warehouse Structural Detailing Services

Rydberg Engineering LLC provides professional structural steel detailing, 3D structural modeling, BIM coordination, connection detailing, steel shop drawings, erection drawings, and construction documentation services for warehouse, industrial, commercial, institutional, and infrastructure constructify-project.

Comprehensive Structural Detailing Capabilities

Rydberg Engineering LLC supports constructify-project with:

• Structural steel detailing
• 3D structural modeling
• Building Information Modeling (BIM)
• BIM clash coordination
• Steel shop drawings
• Steel erection drawings
• Connection detailing
• Miscellaneous steel detailing
• Equipment support detailing
• Construction documentation
• Structural quality control

Engineering-to-Fabrication Workflow

A coordinated workflow helps transform structural engineering requirements into accurate and practical fabrication and construction information.

Precision-Focused Project Delivery

Attention to structural geometry, dimensions, materials, connections, piece marks, and interdisciplinary coordination helps support efficient project delivery.

Internal Link – Structural Steel Detailing

Learn more about Rydberg Engineering LLC’s Structural Steel Detailing Services, including structural modeling, BIM coordination, connection detailing, steel shop drawings, and erection documentation.

Structural Steel Detailing Services – Rydberg Engineering LLC

External Link – Structural Steel Industry Resource

For additional information about structural steel design, fabrication, specifications, and construction practices, visit the official American Institute of Steel Construction (AISC) website.

American Institute of Steel Construction – Official Website

Conclusion – Oakdale Industrial III Warehouse Project

Oakdale Industrial III demonstrates the importance of integrating structural engineering, structural steel detailing, BIM coordination, and construction documentation in the delivery of a modern warehouse facility. The structural system must accommodate storage, material handling, loading, equipment, building services, circulation, and long-term operational requirements while maintaining strength, stability, and constructability.

Accurate 3D structural modeling provides a comprehensive digital representation of the warehouse framing and allows project teams to evaluate complex conditions before fabrication. BIM coordination can also help identify conflicts between structural steel and architectural, mechanical, electrical, plumbing, fire protection, and operational systems.

Detailed steel shop drawings provide fabricators with dependable information about structural members, dimensions, materials, plates, bolts, welds, stiffeners, connections, and assemblies. Coordinated erection drawings provide field teams with the information necessary to identify, locate, orient, and install steel components efficiently.

For Rydberg Engineering LLC, the Oakdale Industrial III project reflects a commitment to technical accuracy, structural detailing expertise, constructability, and effective communication. By combining structural steel detailing, BIM modeling, connection detailing, fabrication drawings, erection documentation, and quality control, Rydberg Engineering LLC supports a coordinated workflow from engineering design through fabrication and field construction.

Ultimately, the Oakdale Industrial III warehouse project showcases how professional structural steel detailing can contribute to an efficient, durable, and reliable industrial facility. Through accurate modeling, coordinated framing, carefully developed connections, fabrication-ready drawings, and interdisciplinary collaboration, the project provides a strong foundation for successful construction and long-term warehouse operations.
